List of configuration data of tees and Steel in Steel connections (Output Table)

Data description/Result options:

IDENT1:

Name of ident connected to IDENT2

NODE1:

Node number of IDENT1

IDENT2:

Name of ident connected to IDENT1

NODE2:

Node number of IDENT2

CONTYPE:

Type of connection. This can either be 'Tee', 'Fixed' or 'Roller'

CONNAME:

Reference to tee data specified in tables TEECONF and TEESPEC and steel in in steel data specified in table SISPRC

OFFSET:

Only in case of a roller connection: initial offset from node on outer pipeline along its pipeline axis

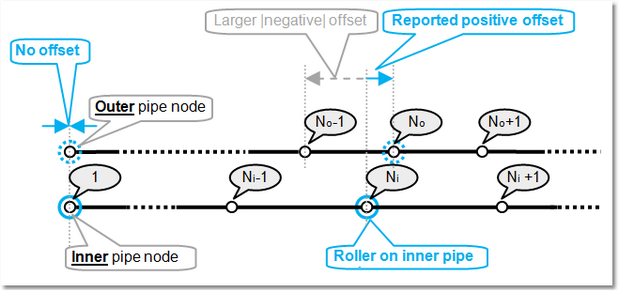

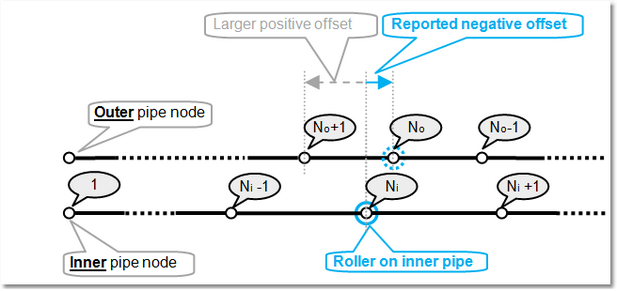

Rollers are always placed on a node of the inner pipe. The longitudinal nearest element on the outer pipe is assigned as the outer pipe roller element. The offset is defined as the absolute smallest longitudinal distance between the inner pipe roller node and one of the two outer pipe roller nodes along the outer pipe axis.

COSYS:

Coordinate system of the connect

(A 'Tee' and a 'Fixed' have a global coordinate system. A 'Roller' a local coordinate system with respect to the outer pipe.)

---
