Firmware update

The hardware key (dongle) used with Ple4Win can has a cryptographic processor inside, which is controlled using a bit of internal programming (the firmware). As with normal software, firmware can be changed and re-programmed into the key. Firmware changes can only be done by Wibu Systems, but updating the firmware of a key can be done by a user.

Click to expand/collapseHow to update the firmware

Info Make sure that the hardware key is attached to the computer where Ple4Win is installed.

1.Open the Codemeter Control Center.

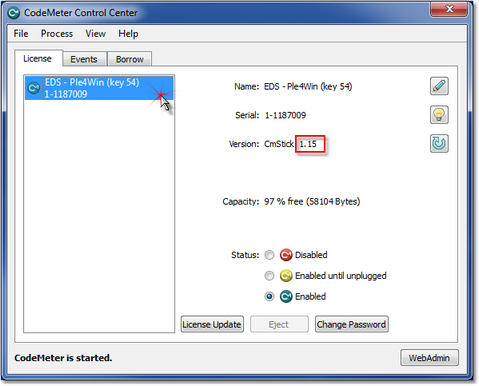

2.In the list on the left, click on a CM-Stick (if the list is empty means the key is not connected or not recognized). Check the firmware version in Version field.

firmwareupdatelicense0

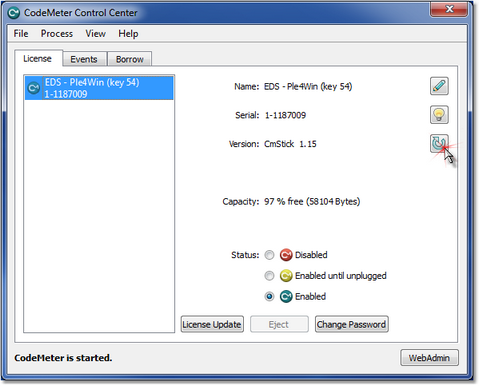

3.If the firmware version is lower than “1.18”, an update is necessary. Click on the Firmware Update button.

firmwareupdatelicense1

4.A password might be requested, use "CodeMeter" (case-sensitive, without the quotes) if necessary.

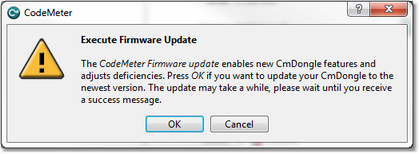

5.A warning message will be given. Click OK to confirm.

firmwareupdatelicense2

6.Wait until the progress message disappears, it may take a couple of minutes.

firmwareupdatelicense3

7.On success, a message is shown. Click OK, then unplug the hardware key and plug it in again.

firmwareupdatelicense4

8.After a short moment, the Codemeter Control Center window should update itself and will show the new firmware version.

firmwareupdatelicense5

KeyFirmwareUpdate, last changed: 14/09/2016
